Instrumentation Manifolds

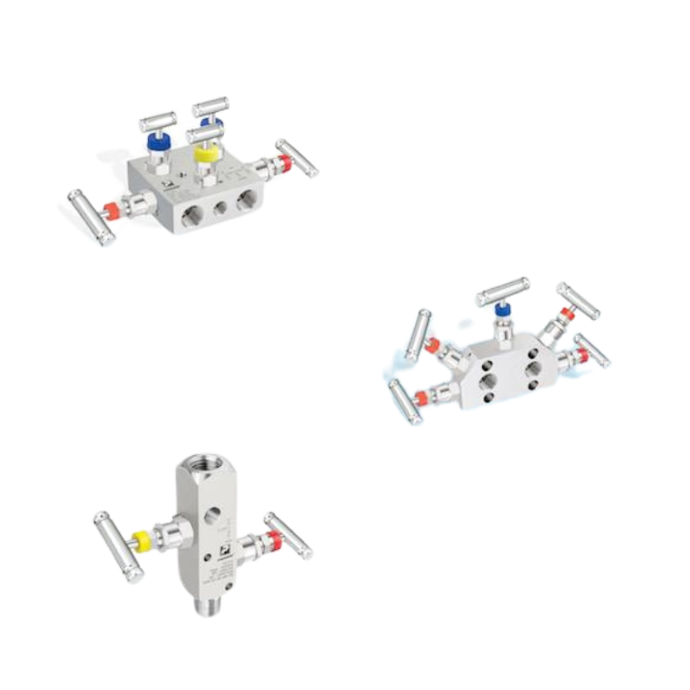

PANAM Instrumentation Valve Manifolds offer a safe and economic method of installing instrumentation to control and measure the pressure and flow of liquids or gaseous media. They are ruggedly manufactured, and precision machined to the exact dimensional tolerance to ensure ease of installation and application.
PANAM Two Valve Manifolds are designed for connecting system impulse
lines and transmitters. The two-valve configuration allows for easy
isolation, calibration, and block & bleed for gauges, pressure
switches, and static pressure transmitters. They are ruggedly
manufactured, and precision machined to the exact dimensional tolerance
to ensure perfect installation and application. These two valve
manifolds combine the functions of a tee, a calibration valve, an
isolation valve and all tubing and fittings into a single compact unit
thus reducing the number of fittings and space required for
installation. They are available in both A105 Carbon Steel and 316
Stainless Steel (Monel, Inconel and Alloy available upon request) and
are rated for pressures as high as 6000 psi.
PANAM Three Valve Manifolds are designed for connecting system impulse lines and transmitters and are rugged in construction to withstand high pressures and temperatures. They consist of direct or remote mounting connections, with one equalizer valve and two block valves. Configurations include pipe to pipe (R), pipe to flange (T) and flange to flange (H) with ½” FNPT connections and standard 54 mm (2 1/8”) flange centers.
PANAM Five Valve Manifolds are designed for connecting system impulse lines and transmitters and are rugged in construction to withstand high pressures and temperatures. They consist of direct or remote mounting connections, with two equalizer valves with a center common vent, two block valves and two ¼” FNPT purge ports. Configurations include pipe to pipe (R), pipe to flange (T) and flange to flange (H) with ½” FNPT connections and standard 54 mm (2 1/8”) flange centers.
PANAM Three Valve Manifolds are designed for connecting system impulse lines and transmitters and are rugged in construction to withstand high pressures and temperatures. They consist of direct or remote mounting connections, with one equalizer valve and two block valves. Configurations include pipe to pipe (R), pipe to flange (T) and flange to flange (H) with ½” FNPT connections and standard 54 mm (2 1/8”) flange centers.
PANAM Five Valve Manifolds are designed for connecting system impulse lines and transmitters and are rugged in construction to withstand high pressures and temperatures. They consist of direct or remote mounting connections, with two equalizer valves with a center common vent, two block valves and two ¼” FNPT purge ports. Configurations include pipe to pipe (R), pipe to flange (T) and flange to flange (H) with ½” FNPT connections and standard 54 mm (2 1/8”) flange centers.
Features
- One-piece forged body without welds
- Safety bonnet lock
- Metal to metal seat
- Rolled and hard plated stem threads and tip stellated to prevent galling and extend life of valve
- Two-part stem tip arrangements
- Non-rotating ball tip to ensure bubble tight seal and shut-off
- Safety back seating on stem
- Standard PFTE packing, however GRAFOIL available for high temperatures upon request
- Maximum Working Pressure (MWP) and Temperature
- PTFE Packing: 6000 psi at 93°C and 4000 psi at 260°C
- GRAFOIL Packing: 6000 psi at 93°C and 3600 psi at 325°C
- 316 Stainless Steel of A105 Carbon Steel body construction (Monel, Inconel and Alloy 400 available upon request)
Quality Test Procedure
- Nitrogen Gas at 1200 psi (80 bar) to ensure no leakage at seal and seat
- Hydrostatic test with pure water at 1.5 times maximum working pressure (MWP)
- Optional tests including Helium and Temperature available upon request
Part Drawings
- Two-valve manifolds
- Three-valve manifolds
- Five-valve manifolds
