Solar Chemical Injection Pump

LESS POWER, MORE ENERGY

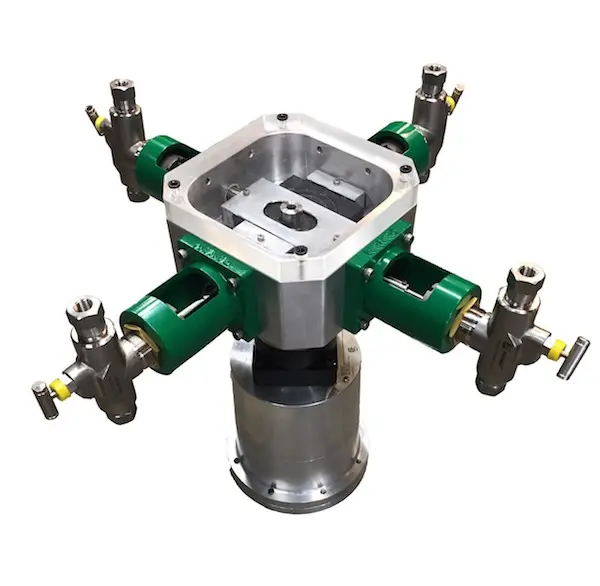

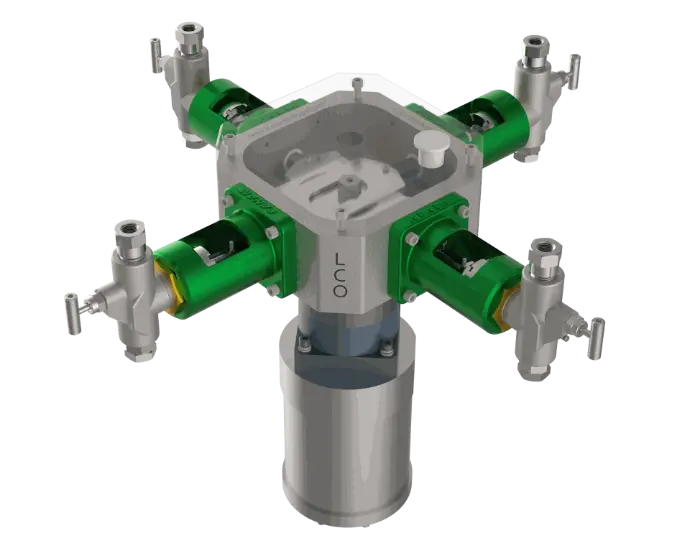

The LCO Technologies CROSSFIRE Solar-powered Chemical Injection Pump is an ultra-low power device that is designed to reduce chemical costs, maintenance costs and methane emissions. It is a durable, energy-efficient solution like no other that can run for weeks – not days – even in areas with limited sunlight. It can be configured with one to four fluid ends, allowing you to replace up to four pneumatic pumps with one unit.

Learn What Makes Us Different

Features

  • Eliminates methane venting from chemical injection
  • Precise chemical injection
    • Delivers chemical proportionate to flow
    • Consistent chemical dispersion rate
    •   Delivers <1L/day to 720 L/day up to 10,000 psi
  • High system autonomy
    • Ultra-low power chemical injection pump that can run weeks, not days, using solar and batteries on most applications
  • Standard 5100 series fluid ends for field familiarity
    • Customization available based on fluid end size, packings, and O-rings based on application
  • Comes complete with a smart controller that has MODBUS communications and ethernet built in as a standard
  • User friendly operator and technician interface that is password protected

Resources

Discover CROSSFIRE Accessories



Adjustable Thrust Rods (ATR1)

The ATR1 is designed to give operators greater control over chemical injection rates in demanding field applications. Built to accommodate wear and changing operating conditions, the ATR1 assembly allows for precise adjustment directly at the pump, helping maintain accurate chemical delivery over time.

The ChemKeeper

The ChemKeeper is designed specifically to support field operators working in high pressure environments. Built to add an extra layer of protection at the fluid end, it helps reduce chemical waste, extend packing life, and improve day to day operational reliability.

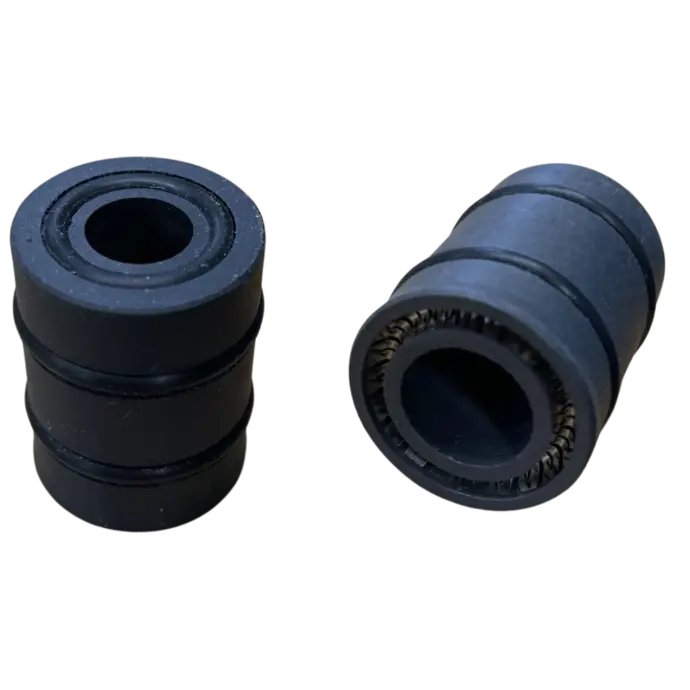

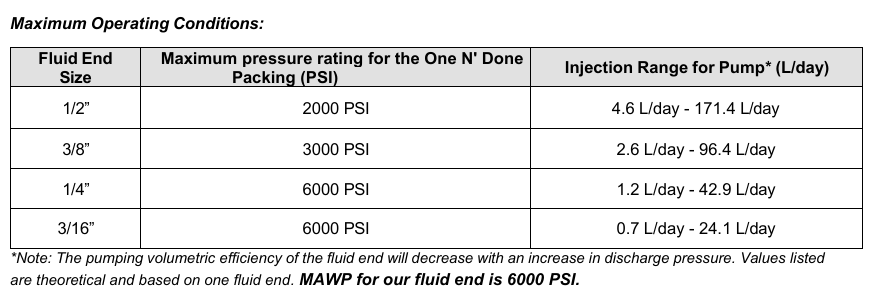

The One N' Done Packing

The One N' Done packing is the first cartridge-style pump packing designed to withstand all chemical compounds in the field. Being universally compatible, it eliminates the need to choose between different vee packings. Say goodbye to frequent replacements - this packing is built for the toughest installations.
